User’s Guide for Control Panel version 4.x for SMS Engine — Enterprise Edition


REVISION HISTORY



DATE REVISION



RELEASE NOTES

VERSION DATE DESCRIPTION
4.3 2022-Aug-15 Released; new functions introduced:-
a) when engine is stopped, e-mail alert will be triggered and attached with log file
b) when any modem is unable to initialize, e-mail alert will be triggered and attached with log file



GENERAL CONFIGURATION

STEPS SCREEN CAPTURE
Make Control Panel to always run as administrator. Right-click on Control Panel -> Properties.
In Control Panel Properties go to Compatibility tab and check "Run this program as administrator" box in Privilege level section. Click OK.
Open Control Panel program by double-click on the shortcut. In this example the shortcut is located at the desktop.

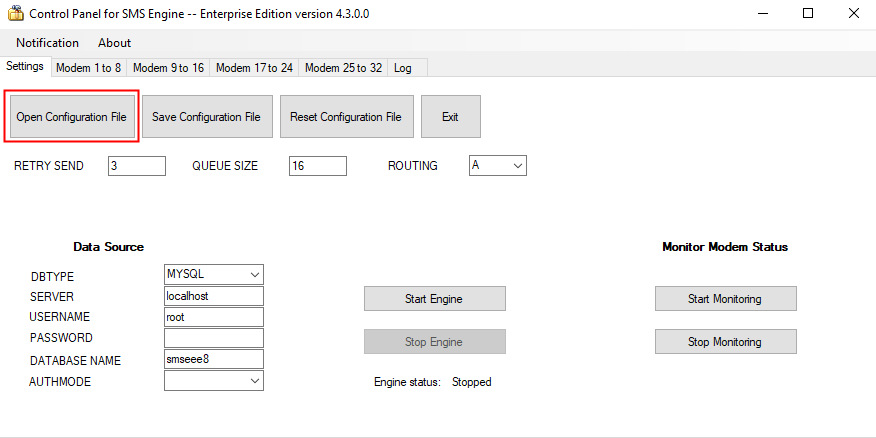

Click Open Configuration File to choose "configuration file".

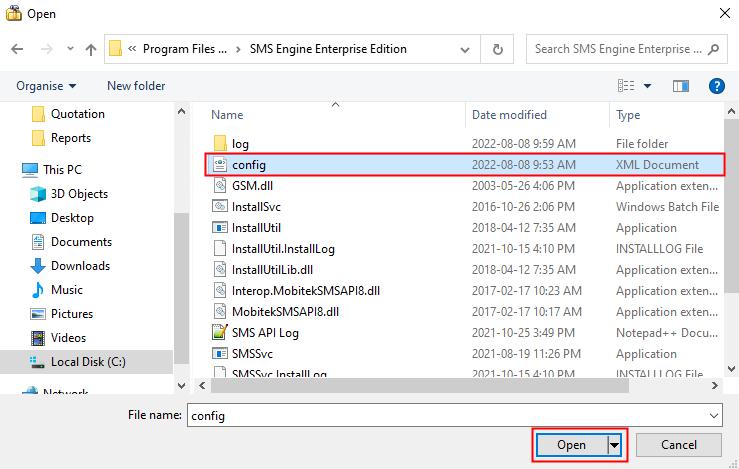

Select "config" and click open which is located in "C:/Program Files/SMS Engine Enterprise Edition".

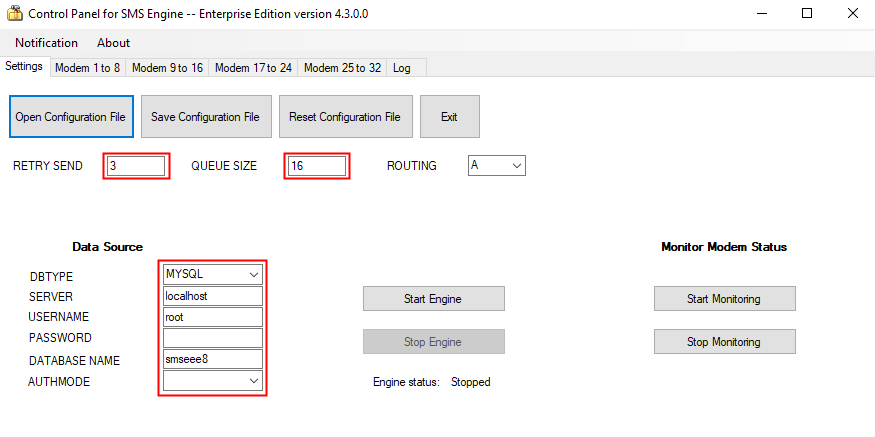

Set the "RETRY SEND", "QUEUE SIZE", "ROUTING"  and "Data Source".

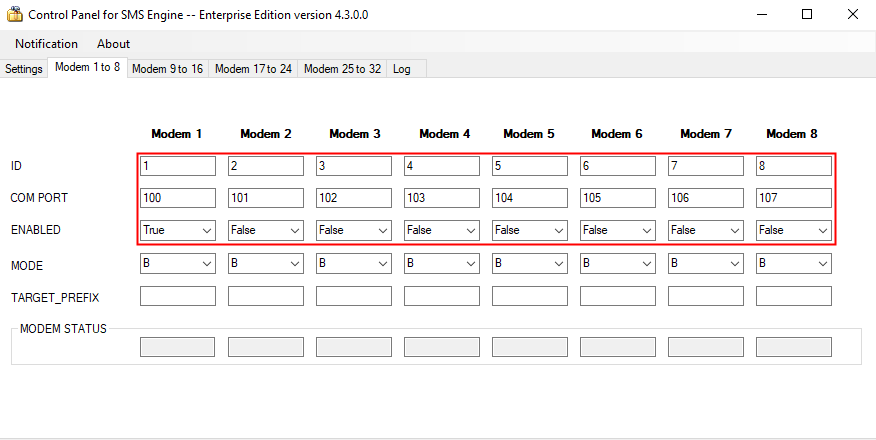

Enter value for "ID", "PORT". Set to "True" to enable the modem.

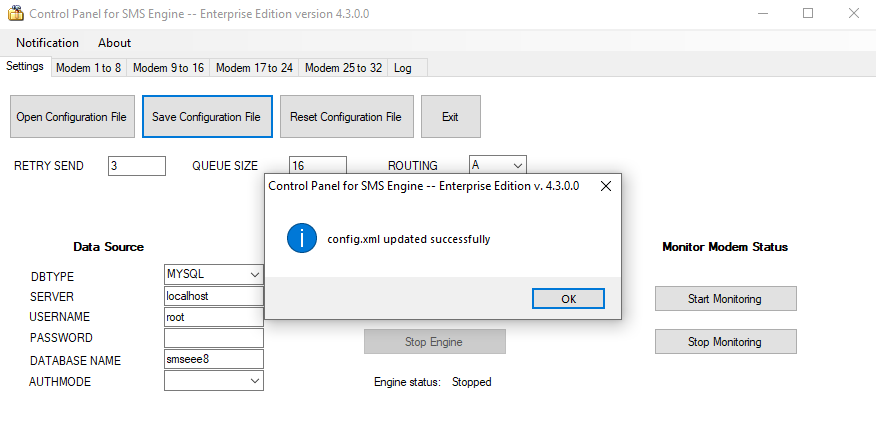

Click Save to save the changes made.
Configuration is saved successfully.



STARTING AND STOPPING THE ENGINE

STEPS SCREEN CAPTURE

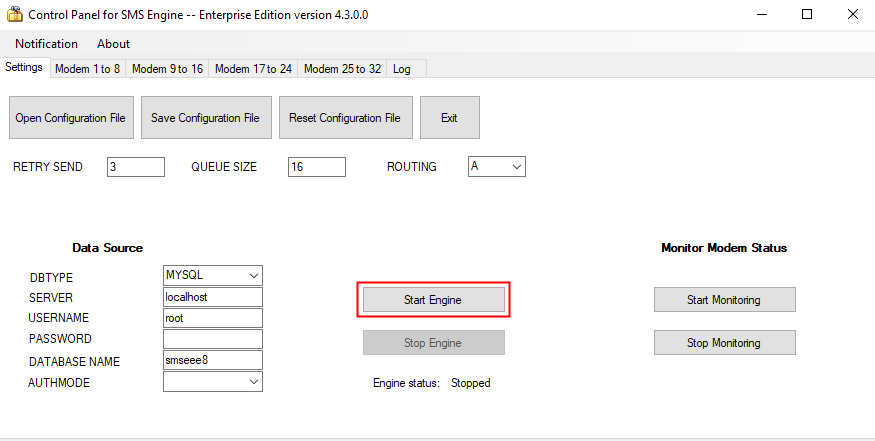

Click "Start Engine" to start the service.

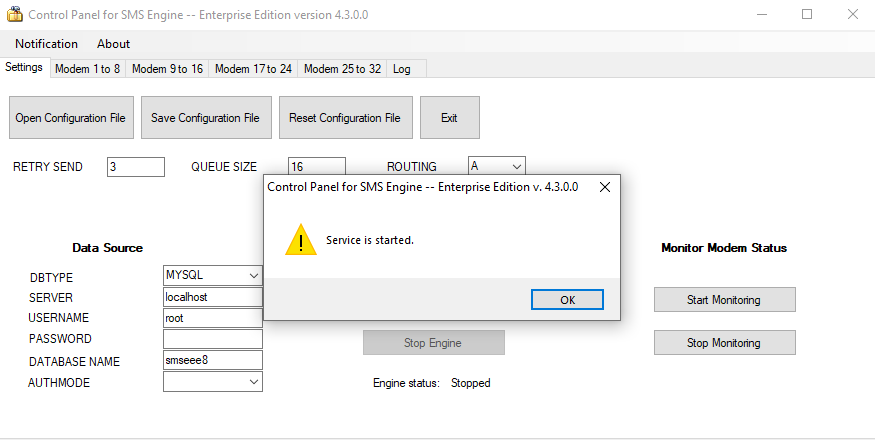

Service started successfully.

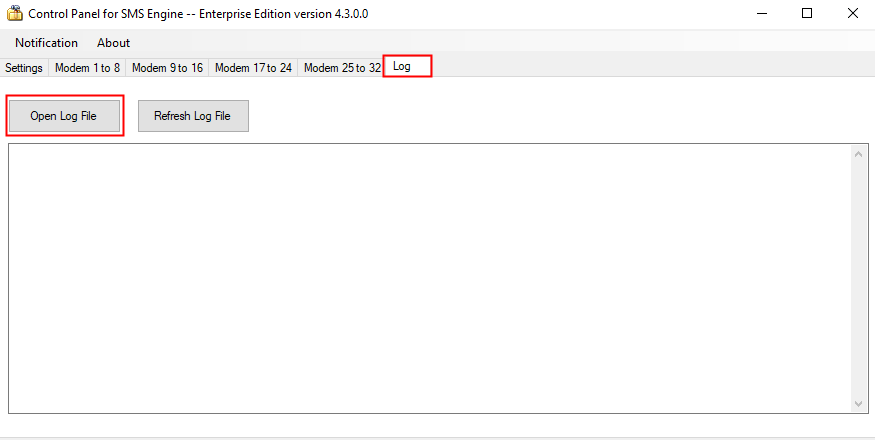

To check whether the Modem are initialized or not >> Go to "Log" tab >> Click "Open Log" in control panel.

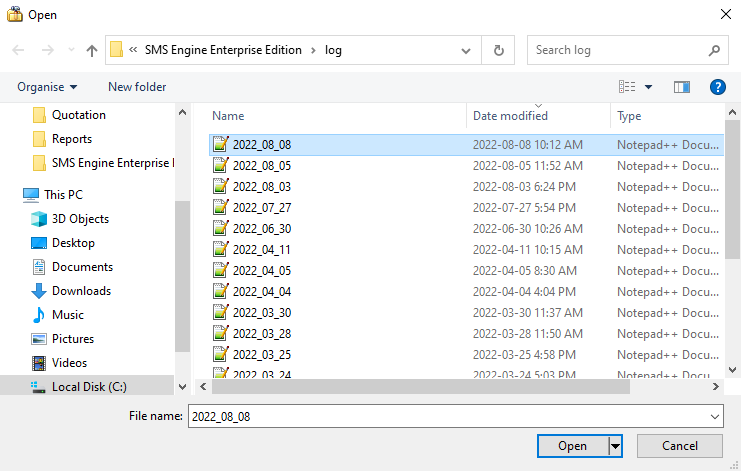

Open current date Log File which is located in "C:/Program Files/SMS Engine Enterprise Edition/log".

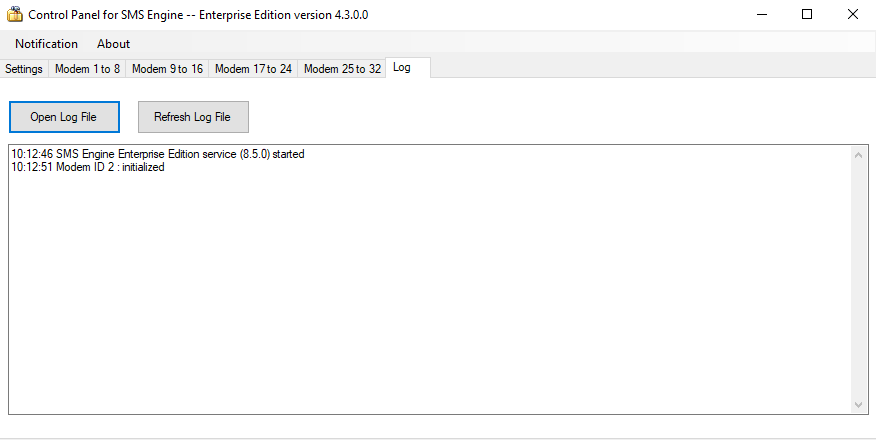

The log file will show the SMS Engine is started and Modem ID 2 is initialized.

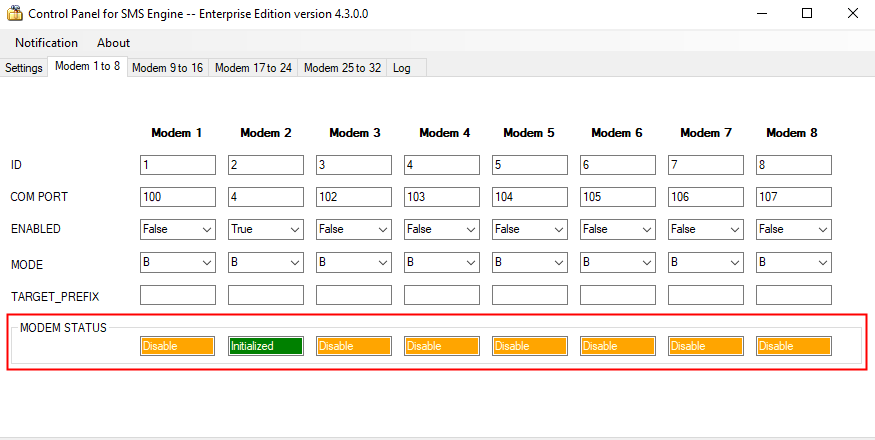

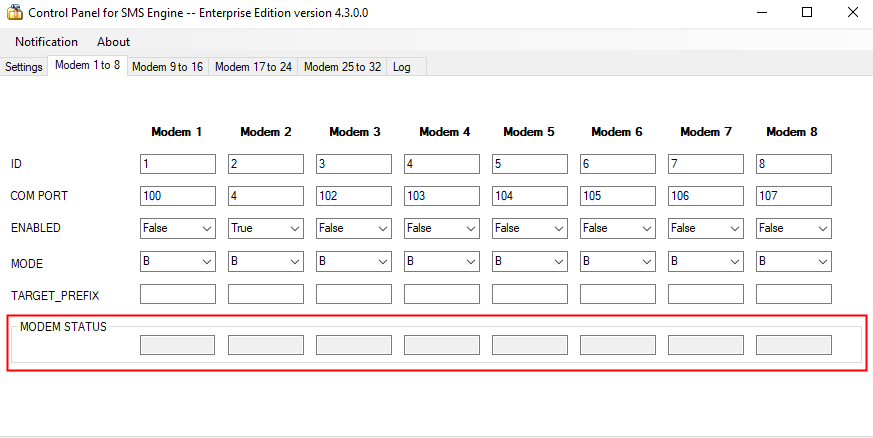

In control panel the MODEM STATUS textbox will change according to the modem's current status.

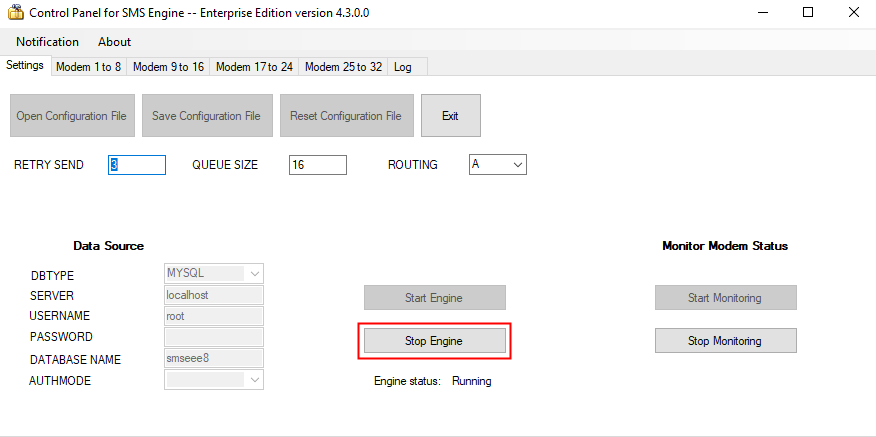

Click "Stop Engine" to stop the service.

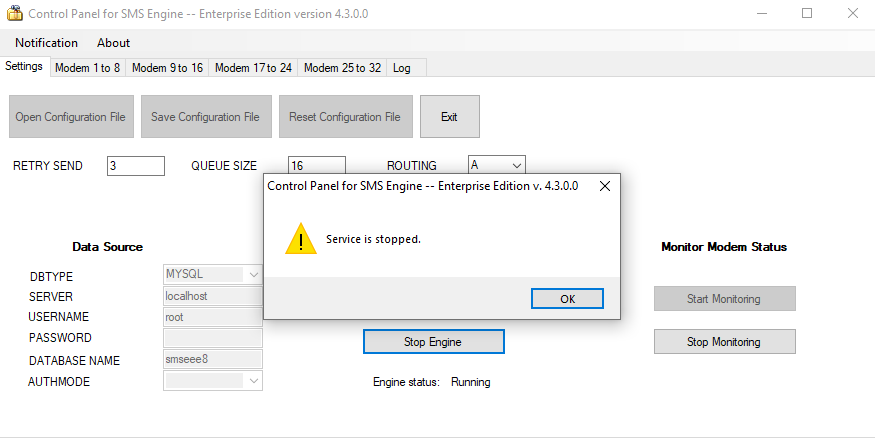

Service stopped successfully.

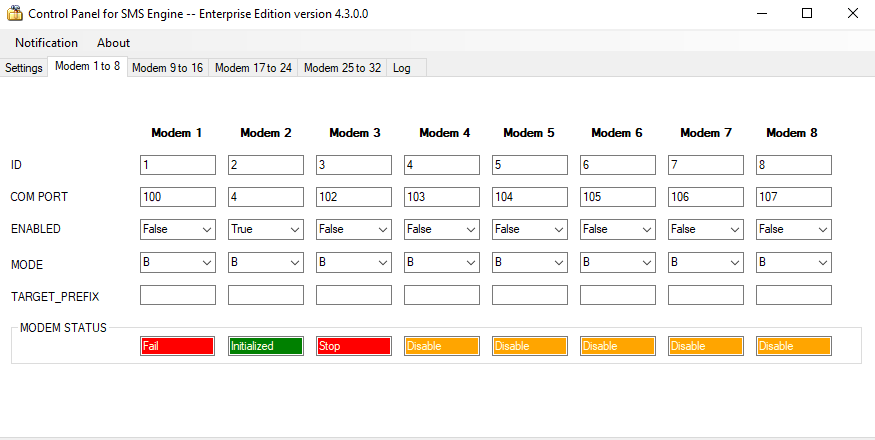

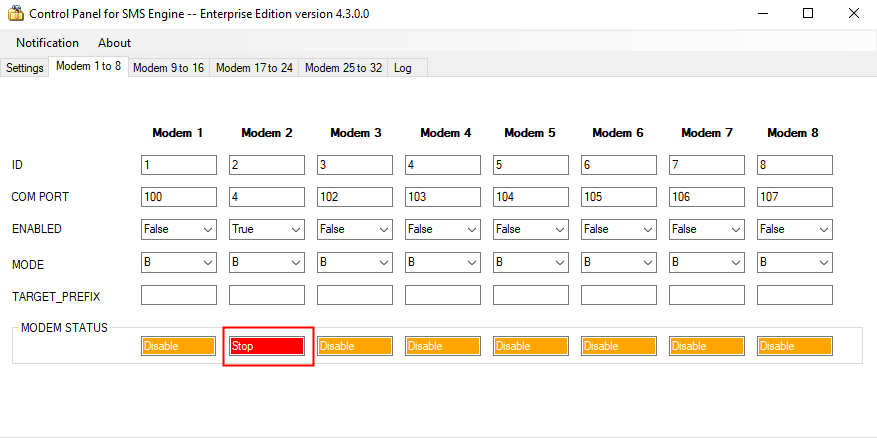

The status of Modem ID 1 is now "Stop".



MONITORING THE STATUS OF MODEMS

STEPS SCREEN CAPTURE
Modem status is logged in "modem_state" table.

Note: 1= Stop; 3= Fail; 5= Initialized; 0= Disable; 1= Stop

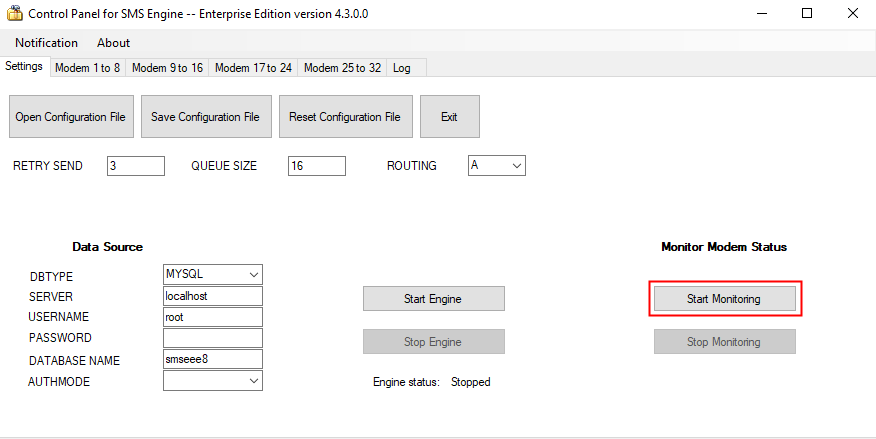

In Control Panel click "Start Monitoring" to monitor the modem status.

Note: monitoring cannot be started if either the MS SQL Server or MySQL service is not running.
Control Panel will read the values from "modem_state" table and display it.

Note: Stop=red; Fail=red; Initialized=Green; Disable=yellow
Click "Stop Monitor" to stop monitoring.

Note: monitoring will automatically stopped if connection to SQL server is disconnected.
The "Modem Status" colour will be reverted.



E-MAIL NOTIFICATION

STEPS SCREEN CAPTURE
Notification is used to send the log file by e-mail in these 2 conditions:

1) when engine is stopped

2) when any modem is unable to initialize

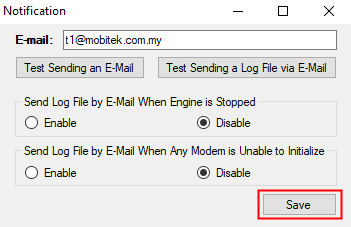

Click on "Notification" menu.
Enter the recipient's e-mail address.
To test sending an e-mail, click "Test Sending an E-Mail" button. Check the recipient's inbox for a new e-mail.
To test sending a log file, click "Test Sending a Log File via E-Mail" button. For this to work, please make sure there is a log file with current date in "..\SMS Engine Enterprise Edition\log" folder. An e-mail with the log details will be sent to recipient e-mail that has been set earlier.

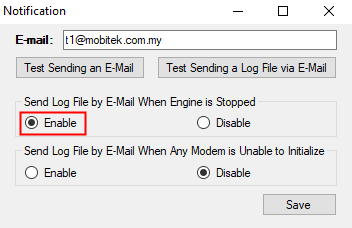

To receive e-mail notification when the engine is stopped, enable "Send Log File by E-Mail When Engine is Stopped".

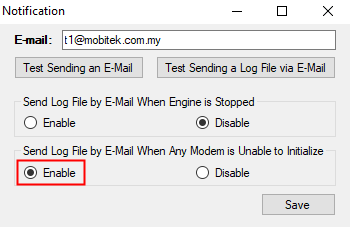

To receive e-mail notification when any modem is unable to initialized, enable "Send Log File by E-Mail When Any Modem is Unable to Initialize".
Click "Save" button to save settings made.
